Quick Details
- Brand Name: FONA
- Model Number: FONA 1000 S
Packaging & Delivery
| Packaging Details | 1pc/ctn |
|---|---|
| Delivery Time | 4 to 6 weeks |
Specifications
SAFE INVESTMENTWith unique design, our new generation, FONA 1000 provides you with reliable quality and longevity. Easy-to-use

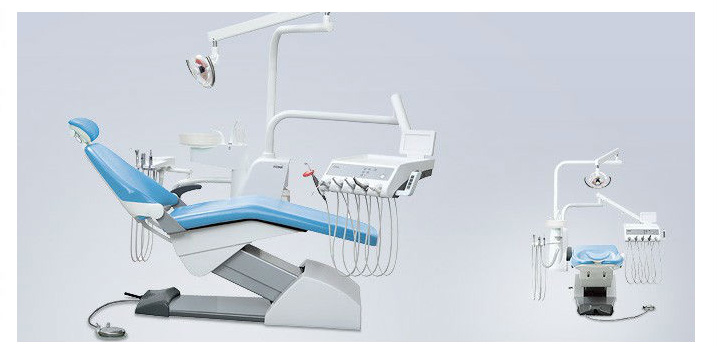

Dental Chair
SAFE AND CONVENIENT OPERATION
With
backrest and seat safety system as well as the last chair position
memory, the latest S series from FONA not only continues its heritage of
reliability and hygiene, but also enhances both safe and convenient
treatment operations.
Features
The latest luxury headrest makes your operation even more convenient by pushing the button with only one hand
Positioning function of whip arm system eases your tiredness from pulling hoses
Last memory position allows you back to the previous treatment position easily
With chair-light simultaneous on/off system
3 customized programmable chair positions
One main switch to control power, air and water
Reliability is guaranteed by the structural product design, best quality materials and strict manufacturing management
The chair will stop automatically once the backrest or seat runs into an obstacle
Chair-instrument lock enables safe operation
The standard dentist element of FONA 1000 S offers you with spacious working area
Preset and programmable positions, cup filler, bowl rinse as well as dental light are controlled from the touch panel
Standard configuration
Patient Chair
- Electrical chair movement
- Luxury articulated headrest
- General switch to control air, water and electricity
- 2 preset chair positions
- 3 programmable chair positions
- Chair-backrest safety system
- Chair-instrument lock
- Last memory chair position
- 4 way foot control
- Foot control
- Adjustable OP light with dimmer
- Working stool

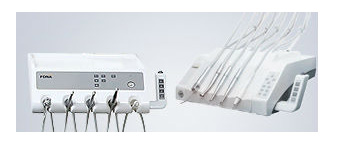

Dentist element
- Dentist element with hanging hoses (1000 S)
- Dentist element with whip arm system (1000 SW)
- Air pressure meter
- Silicon mat (1000 S only)
- Joystick to control chair position
- Stainless steel tray (37cm*29cm, 1000 SW only)
- Position 1: Three way syringe
- Position 2/3/4: Handpiece hose for air turbine or air motor (1000 S)
- Position 2/3: Handpiece hose for air turbine or air motor (1000 SW)
- Dentist control panel

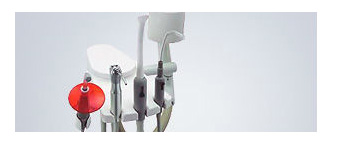

Assistant element
- Suction filter system
- Position 1: three way syringe
- Position 2: HVE
- Position 3: saliva ejector
Water Unit

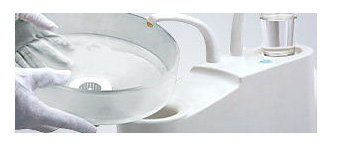

- Swiveled and removable cuspidor bowl
- Programmable cup filler and bowl rinsing system
- Fresh water bottle 1.5 L
- Water heater
- Air venturi system
- Air water separator
Options and technical specification
Options
- Armrest (left/right)
- The 2nd working stool
- Multifunctional foot control
- Intra-oral camera
- Intra-oral camera and screen support arm
- LED light
- Scaler at dentist element
- Curing light at dentist element
- Fiber optic supply and handpiece tube kit
- Electrical motor (only with a multifunctional foot control)
- X-ray film viewer (12VDC)
- Assistant control panel
- Central wet suction system
Technical specification
- Voltage: AC220 V / AC110 V, 50 Hz / 60 Hz
- Water pressure: 0.20 - 0.40 Mpa / 2.0 - 4.0 bar
- Air pressure: 0.55 - 0.80 Mpa / 5.5 - 8.0 bar
-
Air exhaustition:
≥ 55 L / min (Water venturi)
≥ 120 L / min (Air venturi)
